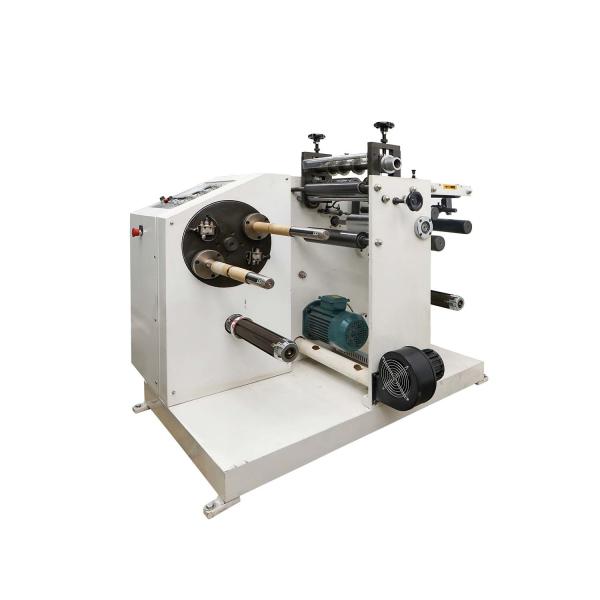

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system

Name: Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Brand: ruiting
Price: 1 USD

Best Paper Roll Slitter Rewinder 420mm with Frequency inverter control system wholesale

Brand Name : ruiting

Model Number : RTFQ-420

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Weight : 500KGS

Warranty : 1 Year

Computerized : Yes

Voltage : 220V

Dimension(l*w*h) : 1200*1200*1200mm

Product name : 320 Simple Adhesive Paper Label Slitting Machine

Speed : 120m/min

Precision : ±0.1mm

Max.rewind diameter : 500mm

Max unwinding diameter : 300mm

Contact Now

420 Auto Paper Roll Slitter Machine With Turrent Rewind

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

- Have 1 photo electric eyes for web guide

- Have meter counting

- Frequency inverter control system

- Use 3 inch air shaft(Φ76mm) for unwind (also can make according to your request)

- Use turrent rewind, 1 pcs 3 inch air shaft and 1 pcs 1 inch air shaft.

- With touch screen control panel

- With auto taper tension control

- Have one wasting fan

- Have 8 sets knife

Main Technical Specification:

Cutting speed	5-180(m/min)
Max web width	420mm
Max unwinding diameter	500mm
Max rewinding diameter	300mm
Min. width after slitting	20mm
Slitting precision	0.2mm
Total power	1.5kw
Power supply voltage	220V ( can make as your request)
Overall diameters	1.2 (L)1.2 (W)1.2 (H)
Machine weight	(about)500kg

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system

Product Tags:

Paper Roll Slitter Rewinder

Roll Slitter Rewinder 420mm

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system Images
