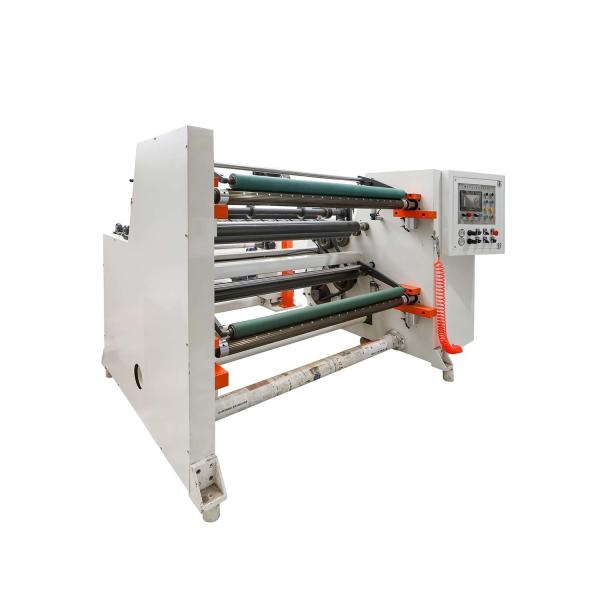

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

Name: 380V Slitter And Rewinder Machine 1600mm Touch Screen Control
Brand: ruiting
Price: 1 USD

Best 380V Slitter And Rewinder Machine 1600mm Touch Screen Control wholesale

Brand Name : ruiting

Model Number : RTFQ-1600

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Weight : 2900KGS

Warranty : 1 Year

Computerized : Yes

Voltage : 380V

Dimension(l*w*h) : 2400*3000*1700mm

Product name : 1600 Touch Screen Control Wide Paper Roll Slitter And Rewinder Machine

Speed : 200m/min

Precision : ±0.1mm

Max.rewind diameter : 500mm

Max unwinding diameter : 1000mm

Contact Now

1600 Touch Screen Control Wide Paper Roll Slitter And Rewinder Machine

Product Description

This machine slitting material from jumbol wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material. The machine can use both round knife, razor knife.

Main features

1) Meter counting

2) One photoelectric eye for web guide

3) 8 sets rotary blade for slit paper(If you need also slit film, can add 8 sets straight knife)

4) 3 inch air shaft for both unwinding and rewinding

5) Automatic loading

6) Auto tension control

7) Max unwinding diameter 1000mm

8) Max rewinding diameter 600mm

Main Technical Specification:

Max web width	1600mm
Max rewinding diameter	500mm
Max. unwinding diameter	1000mm
Min width	25mm
Power Supplier	AC380V, 3 phase
Cutting precision	0.2mm
Cutting speed	10-200m/min
Overall dimensions(LWH)	2.43.01.7m
Machine weight	2900kg
